Standard Connectors

Headers, PC/104, Sockets, Jumpers/Shunts, and SCSI/Drive Connectors

Standard Connectors

ISI manufactures thousands of standard connectors in a wide variety of configurations, contact styles and plating, most of which are available within 72 hours. ISI connectors utilize low resistance and high current rating contacts. Connector materials are RoHS compliant and high temp rated (260ºC).If you don’t see what you’re looking for below, please contact us.

male pin header

Headers
pc104 connectors

PC/104 and PC/104 Plus Connectors
pin sockets

Sockets
jumper shunt

Jumpers/Shunts
scsi drive connectors

SCSI & Disk Drive Connectors

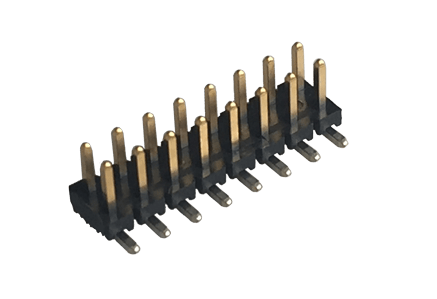

Headers

male pin headers
  • Insulator
  • Material – Hi-temp glass filled thermoplastic, 94V-O
  • temp rating -65ºC to + 260ºC
  • insulation resistance 5000 megohm @ 500 VDC
  • Heat deflection – 260ºC @ 264 psi
  • RoHS Compliant
  • Color – black
  • Contact (0.016 sq and 0.018 dia.)
  • Material – Phosphor Bronze, drawn wire, burr free both ends.
  • Current Rating – 1 amp continuous @ 100 VDC
Male Pin Headers: 1MM .012 inch (.30MM) Square Pins
Thru Hole – Single Row 87-1
Thru Hole – Double Row 87-2
Surface Mount – Single Row 88-1
Surface Mount – Double Row 88-2
Male Pin Headers: 1.27MM .016 inch (.406mm) Square Pins on .050 inch x .050 inch (1.27 x 1.27 mm)
Single Row Straight Header, Thru Hole 44-1
Single Row Straight Header, Board Stacking, Thru Hole 53-1
Single Row Right Angle Header, Thru Hole 46-1
Single Row Right Angle Header, Low Profile, Thru Hole 46-2
Double Row Straight Header, Thru Hole 44-2
Double Row Straight Header, Board Stacking, Thru Hole 54-1
Double Row Right Angle Header, Thru Hole 47-1
Double Row Right Angle Header, Low Profile, Thru Hole 47-2
Single Row Straight Header, Surface Mount 55-1
Single Row Straight Header, Board Stacking, Surface Mount 56-1
Single Row Right Angle Header, Surface Mount 57-1
Double Row Straight Header, Surface Mount 55-2
Double Row Straight Header, Board Stacking, Surface Mount 56-2
Male Pin Headers: 1.27MM .018 inch (.457mm) Round Pins on .050 inch x .050 inch (1.27 x 1.27 mm)
Single Row Straight Header,Thru Hole 45-1
Single Row Straight Header, Board Stacking, Thru Hole Contact US
Double Row Straight Header, Thru Hole 45-2
Double Row Straight Header, Board Stacking, Thru Hole Contact US
Male Pin Headers: 2MM .020 inch (.508mm) Square Pins
Single Row Straight Header, Thru Hole62-1
Single Row Straight Header, Stacking, Thru Hole66-1
Single Row Right Angle, Thru Hole64-1
Single Row Right Angle, High Profile, Thru Hole65-1
Double Row Straight Header, Thru Hole62-2
Double Row Straight Header, Stacking, Thru Hole67-1
Double Row Straight Header, Box, Thru Hole72-1
Double Row Right Angle,, Thru Hole64-2
Double Row Right Angle, High Profile, Thru Hole65-2
Triple Row Straight Header, Thru Hole63-1
Four Row Straight Header, Thru Hole63-2
Four Row Straight Header, Stacking, Thru Hole67A-1
Six Row Straight Header, Stacking, Thru Hole67B-1
Single Row Straight Header, Surface Mount68-1
Single Row Right Angle Header, Surface Mount70-1
Double Row Straight Header, Surface Mount68-2
Double Row Straight Header, Box, Surface Mount72-2
Male Pin Headers: 2MM .020 inch (.508mm) Round Pins
Single Row Straight Header, Round Pin, Thru Hole71-1
Double Row Straight Header, Round Pin, Thru Hole71-2
Triple Row Straight Header, Round Pin, Thru Hole71-3
Male Pin Headers: 2.54MM .025 inch (.635mm) Square Pins
Single Row Straight Header, Thru Hole4-1
Single Row Straight Header, Stacking, Thru Hole12-1
Single Row U Shaped Parallel Board Connector, Thru Hole10A-2
Single Row Right Angle Header, Thru Hole17-1
Single Row Right Angle Header, Low Profile, Thru Hole6-1
Single Row Right Angle Header, High Profile, Thru Hole7-1
Double Row Straight Header, Thru Hole5-1
Double Row Straight Header, Micro Height, Thru Hole15-1
Double Row Straight Header, Stacking, Thru Hole13-1
Double Row Straight Header, Box, Thru Hole22-1
Double Row Right Angle Header, Low Profile, Thru Hole8-1
Double Row Right Angle Header, High Profile, Thru Hole9-1
Double Row Right Angle Header, High Stand Off, Thru Hole9-2
Double Row Right Angle Header, .100 x .200, Thru Hole11-2
Double Row Right Angle Header, Stacking, Thru Hole17-2
Double Row Right Angle Header, Box, Thru Hole22-2
Triple Row Straight Header, Thru Hole10-1
Triple Row Straight Header, Spacer, Thru Hole14-1
Triple Row Right Angle Header, Thru Hole10-2
Single Row Straight Header, Surface Mount19-1
Single Row Straight Header, Low Profile, Surface Mount20-2
Single Row Right Angle Header, Surface Mount19-3
Double Row Straight Header, Surface Mount19-2
Double Row Straight Header, Saddle Mount, Surface Mount20-1

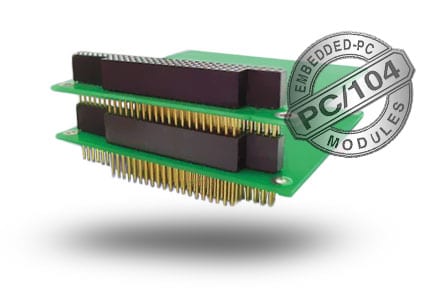

PC/104 Connectors

pc/104 connectors

All ISI PC/104 connectors meet or exceed requirements of the PC/104 Embedded-PC consortium specifications

  • Standard & Custom Configurations Available
  • Custom molded bodies, contacts, plating
PC/104 DocumentationFile size
 PC104 general specs.pdf75 kB
PC104_Datasheet.pdf58 kB
Press in Tool Instructions for Use.pdf38 kB
pc104 120 pin connector
PC/104-Plus, 120 Position, 2mm Pitch
ApplicationLead StylePart Number
StackthroughSoldertail 1242-120G
Press Fit 1242PF-120G
Solder Array 50808-120G
Plastic ShroudAll 1264-120
Non-StackthroughSoldertail 1241-120G2LF
Press Fit 1241PF-120G2LF
Solder Array50825-120G2
End Of Stack HeaderSoldertail 1265
pc104 64 pin connector
PC/104-Plus, 60 Position, 2mm Pitch
ApplicationLead StylePart Number
StackthroughSoldertail 1242H-60G
Non-StackthroughSoldertail 1241H-60G2LF
pc104 30 pin connector
PC/104-Plus, 30 Position, 2mm Pitch
Application Lead Style Part Number
Stackthrough Soldertail 1242H-60G
Non-Stackthrough Soldertail 1241H-60G2LF

PC/104 Hardware

ProductMaterialPart Number
Press In Tool* (required for Press Fit)Hardened Steel HW-PCT2
Bottom Press FixtureHardened Steel HW-PCT3
Spacer (0.600″ between boards)Brass HW-PC600M
Aluminum HW-PC600A
Plastic HW-PC600P
Nut for SpacerPlastic HW-PC440NP
Screw for SpacerPlastic HW-PC440SP

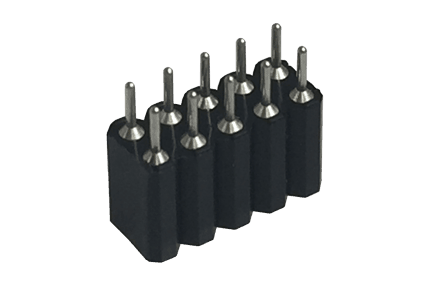

Round & Square Pin Sockets

pin socket
  • Insulator
  • Material – Hi-temp glass filled thermoplastic, 94V-O
  • temp rating -65ºC to + 260ºC
  • insulation resistance 5000 megohm @ 500 VDC
  • Heat deflection – 260ºC @ 264 psi
  • RoHS Compliant
  • Color – black
  • Contact (0.016 sq and 0.018 dia.)
  • Material – Phosphor Bronze, drawn wire, burr free both ends.
  • Current Rating – 1 amp continuous @ 100 VDC

Thru Hole Female Socket / Receptacle: Accepting .012 inch (.30mm) Square Pins

Thru Hole
Single Row, Round Barrel Contact, Thru Hole 89-1
Double Row, Round Barrel Contact, Thru Hole 89-2

Female Socket/Receptacle:
Accepting .016 inch (.406mm) Square & .018 inch (.457mm) Round Pins

Thru Hole
Single Row, Thru Hole 58-1
Single Row, Top & Bottom Entry, Thru Hole 58A-1
Double Row, Thru Hole 59-1
Double Row, Bottom Entry, Thru Hole 59B-1
Double Row, Horizontal Right Angle, Thru Hole 59C-2
Surface Mount
Single Row, Surface Mount 58A-2
Single Row, Right Angle, Surface Mount 57-2
Double Row, Top & Bottom Entry, Surface Mount 59A-1
Double Row, Horizontal Right Angle, Surface Mount 59C-1

Female Socket/Receptacle:
Accepting .020 inch (.508mm) Square & Round Pins

Thru Hole
Single Row Straight Socket, Screw Machine, Thru Hole 76-1
Single Row Straight Socket, Top or Bottom Entry, Thru Hole 78B-1
Single Row Straight Socket, Extender, Screw Machine, Thru Hole 79-1
Single Row Straight Socket, Press Fit, Thru Hole 83-1
Single Row Right Angle Socket, Screw Machine, Thru Hole 77-1
Double Row Straight Socket, Thru Hole 78-2
Double Row Straight Socket, Screw Machine, Thru Hole 76-2
Double Row Straight Socket, Extender, Screw Machine, Thru Hole 79-2
Double Row Straight Socket, Top or Bottm Entry, Thru Hole 80-1
Double Row Straight Socket, for Box Headers, Thru Hole 74-2
Double Row Straight Socket, Pass Through for Box Headers, Thru Hole 75-1
Double Row Straight Socket, Press Fit, Thru Hole 83-2
1,2,3 Row Straight Socket, Low Profile, Screw Machine 79A-1
Four Row 120 Position, PC/104 Plus Compatible, Thru Hole 79A-2
Four Row .800″ Board Centerline, 120 Position, Screw Machine 79B-1
Four Row Straight Socket, Stacking 79E-2
Four Row Straight Socket, Stacking, Screw Machine, Round Pin 79E-1
Four Row .800: Board Centerline, Stackthrough (Available In Press Fit) 79F-1
Six Row .800″ Board Centerline, Stackthrough 79B-2
Six Row .800″Board Centerline, Stackthrough, Screw Machine 79C-1
Surface Mount
Single Row Straight Socket, Top or Bottom Entry 78B-1
Single Row Right Angle Socket 82-1
Single Row Right Angle, Horizontal Socket 78A-1
Double Row Straight Socket, Top or Bottom Entry 80-2
Double Row Straight Socket, for Box Headers 75-2

Female Socket/Receptacle:
Accepting .025 inch (.635mm) Square Pins

Thru Hole
Single Row Straight Socket, Lowest Profile, Thru Hole 35-1
Single Row Straight Socket, Screw Machine, Thru Hole 29-1
Single Row Straight Socket, Screw Machine, Low Profile, Thru Hole 30-1
Single Row Straight Socket, Extender, Screw Machine, Thru Hole 41-1
Single Row Straight Socket, for PC/104 and .800″ Centerline Boards 38-1
Single Row Right Angle Socket, Screw Machine, Thru Hole 31-1
Double Row Straight Socket, Screw Machine, Thru Hole 29-2
Double Row Straight Socket, Screw Machine, Low Profile, Thru Hole 30-2
Double Row Straight Socket, Extender, Screw Machine, Thru Hole 41-2
Double Row Straight Socket, Straddle Mount, Thru Hole 32-1
Double Row Right Angle Socket, Screw Machine, Thru Hole 31-2
Surface Mount
Double Row Straight Socket, Lowest Profile, Surface Mount 34-1
Double Row Straight Socket, Low Profile, Surface Mount 36-1

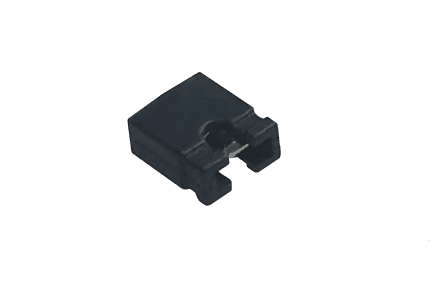

Jumpers/Shunts

jumper shunt
  • Insulator
  • Material – Hi-temp glass filled thermoplastic, 94V-O
  • temp rating -65ºC to + 260ºC
  • insulation resistance 5000 megohm @ 500 VDC
  • Heat deflection – 260ºC @ 264 psi
  • RoHS Compliant
  • Color – black
  • Contact (0.016 sq and 0.018 dia.)
  • Material – Phosphor Bronze, drawn wire, burr free both ends.
  • Current Rating – 1 amp continuous @ 100 VDC

1mm Center Jumpers

2 Pin Jumper   92B-1
Multiple Pin Jumper   92B-2

1.27mm (.050 inch) Center Jumpers

Single Jumper Microshunt, Closed Top   92A-1
Multiple Jumper Microshunt, Closed Top   92A-2

1.27mm (.050 inch) Center Jumpers

Single Jumper Microshunt, Closed Top   92A-1
Multiple Jumper Microshunt, Closed Top   92A-2

2mm (.079 inch) Center Jumpers

Single Jumper Microshunt, Open & Closed Top   92-1

2.54mm (.100 inch) Center Jumpers

Single Jumper Microshunt, Open & Closed Top 93-1
Multiple Jumper Microshunt, Open & Closed Top 93-2

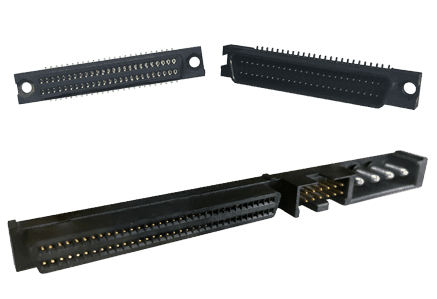

SCSI / Disk Drive Connectors

scsi drive connectors
  • Insulator
  • Material – Hi-temp glass filled thermoplastic, 94V-O
  • temp rating -65ºC to + 260ºC
  • insulation resistance 5000 megohm @ 500 VDC
  • Heat deflection – 260ºC @ 264 psi
  • RoHS Compliant
  • Color – black
  • Contact (0.016 sq and 0.018 dia.)
  • Material – Phosphor Bronze, drawn wire, burr free both ends.
  • Current Rating – 1 amp continuous @ 100 VDC

Surface Mount - Male SCSI & IP Module Connectors

scsi drive connectors male
Male Header IP Mezzanine 50 Pin (for Carrier Board) Surface Mount  50B-2
Male Header SCSI 3, 20 to 120 Pin Surface Mount  50A-2

Thru Hole - Male SCSI & IP Module Connector

scsi drive connectors male
Female Socket IP Mezzanine 50 Pin (for Module) Thru Hole   50B-1
Male Header IP Mezzanine 50 Pin (for Carrier Board) Thru Hole   50A-1

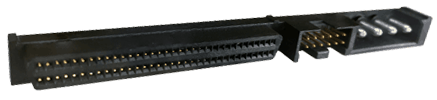

ATA Disk Drive Connectors

ata drive connectors
40 Female + 4 Female Power – Right Angle   160-1
40 Female + 4 Female Power – Reversed Right Angle   161-1
40 Female + 4 Female Power – Straight   162-1
40 Female + 4 Female Power – PCB Edge Mount   163-1
40 + 6 Male + 4 Male Power – PCB Edge Mount   164-1
For WD: 40 Female + 4 Female Power – Right Angle   177-1
For WD: 40 Female + 4 Female Power – Straight   178-1
For WD: 40 Female + 4 Female Power – Straddle Mount   179-1
For Maxtor: 40 + 4 Female – Straight   190-1
For Maxtor: 40 + 4 Female – Right Angle   191-1
For Maxtor: 40 + 4 Female – Straddle Mount   195-1
For Maxtor: 40 + 4 Female – Elevated Rt Angle   196-1
For Maxtor: 40 + 4 Female – Surface Mount   197-1
For Maxtor: 40 + 4 Female – Surface Mount   198-1
For Maxtor: 40 + 4 Female – Surface Mount – WD   199-1
For WD: 40 + 4 Female – Reversed Right Angle   192-1
40 + 4 Female – Tall Height Right Angle   193-1
40 + 9 shunt + 4 Female – Right Angle   135-1
40 + 9 shunt + 4 Female – Reversed Rt Angle   136-1
40 + 9 shunt + 4 Female – Straddle Mount   137-1
40 + 9 shunt + 4 Female – Straight   138-1
For Maxtor: 40 + 8 shunt + 4 Female – Right Angle   130-1
For Maxtor: 40 + 8 shunt + 4 Female – Reversed Rt Angle   131-1
For Maxtor: 40 + 8 shunt + 4 Female – Straight   132-1
For Maxtor: 40 + 8 shunt + 4 Female – Straddle Mount  133-1
For Maxtor: 40 + 4 Female – Reversed Rt Angle  134-1

SCSI Disk Drive Connectors

ata drive connectors
SCSI Disk Drive Connectors
SCSI 68 male + 12 Female + 4 Power – Straight HI REL  172-1
SCSI 68 Female + 12 Male + 4 Power – Straight  173-1
SCSI 68 male + 12 Female + 4 Power – Straddle Mount  174-1
SCSI 68 male + 12 Female + 4 Power – Right Angle LOW COST  175-1
SCSI 68 male + 12 Female + 4 Power – Rev Right Angle LOW COST  176-1

IDE Hard Drive Connectors

ata drive connectors
IDE Combo: 50 Female + 4 Female Power – Right Angle  165-1
IDE Combo: 50 Female + 4 Female Power – Reversed Right Angle  166-1
© Copyright 2024 | Privacy Policy
Code of Conduct
741 Flynn Rd., Camarillo, CA 93012 | +1 805-482-2870 | Contact
