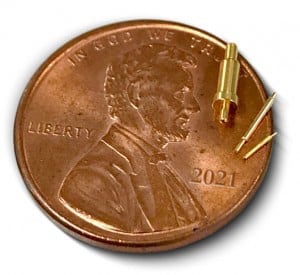

ISI is a global supplier of spring-loaded pogo pins (also known as spring-loaded contacts or spring probes). These high-quality, precision-made pins are available in a variety of lengths, diameters and plunger types to accommodate your needs.

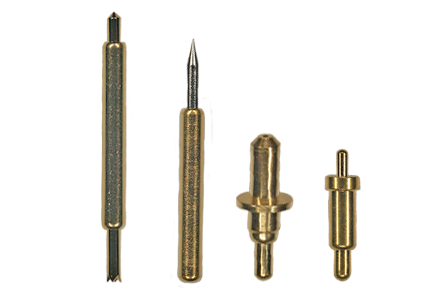

ISI offers a wide range of pogo pins / spring probes for use in a wide range of applications across Aerospace, Medical, Industrial, Communications, Defense and Transportation industries.

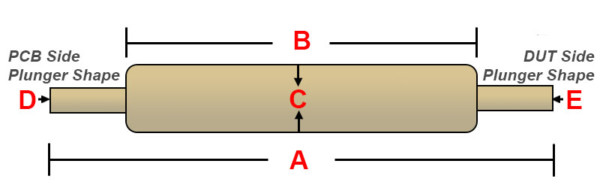

Use the Pogo Pin Key diagram below and corresponding letters as a reference to communicate your pogo pin request. Then select your optimal plunger style(s) from the Plunger Shape Key shown below.
To select a pogo pin that meets your specifications, refer to the corresponding columns A-E listed in the table below.

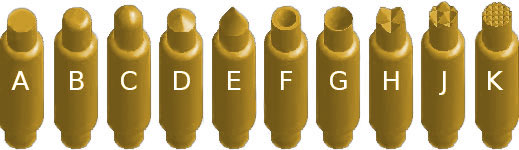

Choose the appropriate plunger shape indicated above for PCB-side and DUT-side contacts and cross-reference to columns D-E listed below.
A = Overall Length (mm)
B = Barrel Length (mm)
C = Barrel Dia. (mm)
Refer to Plunger Shape Key
D = PCB Side Plunger Shape
E = DUT Side Plunger Shape
* Installation and application notes for ISI pogo pins are available upon request.
| Minimum Recommended Pin Pitch | PartNumber | A: Overall Length (mm) | B: Barrel Length (mm) | C: Barrel Diameter (mm) | D: PCB side Plunger Shape | E: DUT Side Plunger Shape | Spring Force at Recommended Travel (grams) | Category | Drawing |
|---|---|---|---|---|---|---|---|---|---|
| 0.30mm | POGO-PIN-2.40-1 | 2.40 | 1.60 | 0.20 | E | H | 12.8 | Semiconductor | Download PDF |
| 0.30mm | POGO-PIN-5.70-5 | 5.70 | 4.00 | 0.21 | E | E | 10.8 | Semiconductor | Download PDF |
| 0.30mm | POGO-PIN-5.70-G | 5.70 | 4.00 | 0.21 | E | E | 10.8 | Semiconductor | Download PDF |
| 0.30mm | POGO-PIN-5.70-H | 5.70 | 4.00 | 0.21 | E | E | 10.8 | Non-Magnetic | Download PDF |
| 0.30mm | POGO-PIN-5.70-J | 5.70 | 4.00 | 0.21 | E | C | 10.8 | Semiconductor | Download PDF |
| 0.35mm | POGO-PIN-2.40-2 | 2.40 | 1.60 | 0.25 | E | H | 14.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-2.55-1 | 2.55 | 1.60 | 0.31 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-2.55-2 | 2.55 | 1.60 | 0.31 | E | E | 18.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-2.55-3 | 2.55 | 1.60 | 0.31 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-2.55-4 | 2.55 | 1.60 | 0.31 | E | E | 11.0 | Non-Magnetic | Download PDF |
| 0.40mm | POGO-PIN-2.55-5 | 2.55 | 1.60 | 0.31 | E | H | 11.0 | Non-Magnetic | Download PDF |
| 0.40mm | POGO-PIN-2.55-6 | 2.55 | 1.60 | 0.31 | H | E | 11.0 | Non-Magnetic | Download PDF |
| 0.40mm | POGO-PIN-3.30-2 | 3.30 | 2.10 | 0.31 | E | E Fixed | 25.1 | General Purpose | Download PDF |
| 0.40mm | POGO-PIN-3.33-3 | 3.33 | 2.30 | 0.31 | E | H | 31.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-4.24-1 | 4.24 | 2.77 | 0.35 | E | E | 32.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-4.30-4 | 4.30 | 3.50 | 0.15 | E | H | 5.2 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-5.64-1 | 5.64 | 3.90 | 0.31 | E | H-Fixed | 25.0 | General Purpose | Download PDF |
| 0.40mm | POGO-PIN-5.70-9 | 5.70 | 4.00 | 0.31 | H | H | 20.3 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-5.95-2 | 5.95 | 4.30 | 0.31 | E | H | 17.3 | Non-Magnetic | Download PDF |
| 0.40mm | POGO-PIN-5.95-4 | 5.95 | 4.30 | 0.31 | E | H | 13.0 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-5.95-7 | 5.95 | 4.30 | 0.31 | E | E | 13.0 | Non-Magnetic | Download PDF |
| 0.40mm | POGO-PIN-6.00-2 | 6.00 | 5.20 | 0.30 | C | B Fixed | 6.5 | General Purpose | Download PDF |
| 0.40mm | POGO-PIN-6.00-3 | 6.00 | 5.20 | 0.30 | Terminal | H | 19.0 | General Purpose | Download PDF |
| 0.40mm | POGO-PIN-6.02-1 | 6.02 | 4.50 | 0.26 | H | H | 24.1 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-6.70-1 | 6.70 | 5.90 | 0.30 | Terminal [OPEN] | C | 6.5 | General Purpose | Download PDF |
| 0.40mm | POGO-PIN-8.00-3 | 8.00 | 6.00 | 0.31 | E | E | 26.4 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-8.00-7 | 8.00 | 6.00 | 0.31 | D | D | 26.4 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-9.70-1 | 9.70 | 7.40 | 0.30 | E | E | 6.4 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-9.70-2 | 9.70 | 7.40 | 0.30 | E | C | 6.4 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-9.70-4 | 9.70 | 7.40 | 0.30 | E | E | 6.4 | Semiconductor | Download PDF |
| 0.40mm | POGO-PIN-9.70-5 | 9.70 | 7.40 | 0.30 | C | C | 6.4 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-1.50-1 | 1.50 | 1.20 | 0.35 | B Fixed | E | 13.0 | General Purpose | Download PDF |
| 0.50mm | POGO-PIN-2.00-1 | 2.00 | 1.20 | 0.35 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-2.00-2 | 2.00 | 1.20 | 0.35 | H | H | 18.5 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-2.00-3 | 2.00 | 1.25 | 0.31 | E | H Fixed | 13.0 | General Purpose | Download PDF |
| 0.50mm | POGO-PIN-3.10-1 | 3.10 | 2.30 | 0.38 | E | E | 16.2 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-3.20-1 | 3.20 | 2.30 | 0.38 | E | H | 16.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-3.20-2 | 3.20 | 2.30 | 0.38 | H | H | 16.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-3.20-3 | 3.20 | 2.30 | 0.38 | H | H | 14.0 | Non-Magnetic | Download PDF |
| 0.50mm | POGO-PIN-3.33-2 | 3.33 | 2.70 | 0.32 / 0.39 Collar | E Fixed | E | 24.4 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-3.33-4 | 3.33 | 2.70 | 0.32 / 0.39 Collar | E Fixed | B | 24.4 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-3.44-1 | 3.44 | 2.00 | 0.38 | D | D | 20.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-4.00-2 | 5.70 | 4.00 | 0.38 | E | E | 34.8 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.13-1 | 5.13 | 3.90 | 0.38 | E | H | Semiconductor | Download PDF | |
| 0.50mm | POGO-PIN-5.16-1 | 5.16 | 3.90 | 0.40 | E | E | 32.5 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.16-2 | 5.16 | 3.90 | 0.38 | E | E | 33.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.40-1 | 5.40 | 3.34 | 0.38 | H | H | 13.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.60-1 | 5.60 | 4.35 | 0.35 | E | H | 28.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.67-1 | 5.67 | 3.90 | 0.38 | E | H | 25.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.67-2 | 5.67 | 3.90 | 0.38 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.67-3 | 5.67 | 3.90 | 0.38 | H | H | 18.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.67-4 | 5.67 | 3.90 | 0.38 | E | H | 25.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-2 | 5.70 | 3.40 | 0.38 | E | H | 30.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-4 | 5.70 | 3.40 | 0.38 | E | H | 15.1 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-7 | 5.70 | 4.00 | 0.38 | E | E | 25.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-8 | 5.70 | 3.40 | 0.38 | E | H | 8.5 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-A | 5.70 | 3.40 | 0.38 | H | H | 15.1 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-D | 5.70 | 3.40 | 0.38 | E | E | 21.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-E | 5.70 | 3.40 | 0.38 | E | E | 30.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.70-F | 5.70 | 3.40 | 0.38 | H | E | 30.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.83-1 | 5.83 | 4.57 | 0.35 | E | C | 27.5 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.94-3 | 5.94 | 4.57 | 0.35 | E | E | 19.8 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.94-4 | 5.94 | 4.57 | 0.35 | E | H | 19.8 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-5.95-3 | 5.95 | 4.57 | 0.35 | H | E | 19.8 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-6.80-1 | 6.80 | 4.80 | 0.38 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-7.62-1 | 7.62 | 5.59 | 0.35 | E | C | 20.0 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-9.70-6 | 9.70 | 7.40 | 0.31 | C | C | 6.4 | Semiconductor | Download PDF |
| 0.50mm | POGO-PIN-10.7-2 | 10.70 | 8.00 | 0.38 | E | E | 3.0 | General Purpose | Download PDF |
| 0.50mm | POGO-PIN-3.70-1 | 3.70 | 3.10 | 0.33 / 0.40 Collar | Terminal [OPEN] | E | 12.0 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-3.73-1 | 3.73 | 2.20 | 0.44 | Terminal | H | 19.7 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-4.20-1 | 4.20 | 2.50 | 0.57 | H | E | 31.8 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-5.33-1 | 5.33 | 3.81 | 0.51 | B Fixed | E | 37.0 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-5.33-2 | 5.33 | 3.81 | 0.51 | B Fixed | E | 40.0 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-5.70-1 | 5.70 | 4.00 | 0.51 | E | H | 23.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-5.70-B | 5.70 | 4.00 | 0.51 | E | H | 23.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-5.70-C | 5.70 | 4.00 | 0.51 | H | H | 23.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-5.72-3 | 5.72 | 3.72 | 0.53 | H | H | 33.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-6.50-1 | 6.50 | 4.00 | 0.51 | E | E | 19.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-6.50-2 | 6.50 | 4.00 | 0.51 | E | C | 19.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-6.90-1 | 6.90 | 5.30 | 0.51 | A | A | 24.6 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-6.90-2 | 6.90 | 5.30 | 0.51 | E | K | 24.6 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-6.90-3 | 6.90 | 5.30 | 0.51 | E | K | 50.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-7.60-1 | 7.60 | 6.80 | 0.51 | Terminal [OPEN] | K | 26.0 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-7.60-2 | 7.60 | 6.80 | 0.51 | Terminal [OPEN] | C | 26.0 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-8.00-2 | 8.00 | 4.00 | 0.51 | E | E | 30.0 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-8.45-1 | 8.45 | 6.00 | 0.51 | E | H | 33.9 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-8.45-3 | 8.45 | 6.00 | 0.51 | E | E | 33.9 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-9.70-7 | 9.70 | 7.40 | 0.51 | E | E | 6.4 | Semiconductor | Download PDF |
| 0.65mm | POGO-PIN-12.3-1 | 12.30 | 8.30 | 0.51 | H | H | 37.2 | General Purpose | Download PDF |
| 0.65mm | POGO-PIN-24.7-1 | 24.70 | 18.70 | 0.51 | E | E | 30.0 | General Purpose | Download PDF |
| 0.70mm | POGO-PIN-1.55-1 | 1.55 | 1.20 | 0.51 / 0.62 Collar | N/A | D | 20.0 | General Purpose | Download PDF |
| 0.70mm | POGO-PIN-1.55-2 | 1.55 | 1.20 | 0.51 / 0.62 Collar | N/A | D | 17.2 | Non-Magnetic | Download PDF |
| 0.70mm | POGO-PIN-2.12-1 | 2.12 | 1.11 | 0.51 / 0.62 Collar | E | E Fixed | 30.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-3.00-1 | 3.00 | 2.00 | 0.57 | E | H | 31.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-3.66-1 | 3.66 | 2.60 | 0.45 / 0.77 Collar | D | H Fixed | 34.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-4.30-3 | 4.30 | 2.80 | 0.64 | H | H | 29.5 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.52-1 | 5.63 | 4.06 | 0.64 | E | H | 19.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.58-1 | 5.58 | 4.06 | 0.64 | E | H | 18.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.58-3 | 5.58 | 4.06 | 0.64 | E | H | 19.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.58-4 | 5.58 | 4.06 | 0.64 | E | E | 18.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.94-1 | 5.94 | 4.30 | 0.59 | E | H | 32.0 | Non-Magnetic | Download PDF |
| 0.80mm | POGO-PIN-5.94-2 | 5.94 | 4.30 | 0.59 | E | E | 40.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.94-5 | 5.94 | 4.30 | 0.58 | E | E | 40.0 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-5.95-8 | 5.95 | 4.30 | 0.60 | H | E | 29.4 | Non-Magnetic | Download PDF |
| 0.80mm | POGO-PIN-8.55-1 | 8.55 | 6.35 | 0.58 | E | E | 23.5 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.69-1 | 8.69 | 6.35 | 0.58 | E | C | 31.3 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.69-2 | 8.69 | 6.35 | 0.58 | E | E | 31.3 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.69-3 | 8.69 | 5.20 | 0.58 | E-Fixed | E | 31.2 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.69-4 | 8.69 | 6.35 | 0.58 | E-Fixed | H | 31.2 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.96-2 | 8.96 | 6.35 | 0.58 | E | C | 31.3 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-8.96-3 | 8.96 | 6.35 | 0.58 | E | C | 31.3 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-9.16-1 | 9.16 | 6.35 | 0.58 | E | C | 31.3 | Semiconductor | Download PDF |
| 0.80mm | POGO-PIN-13.0-3 | 13.00 | 10.00 | 0.60 | E | H | 8.6 | General Purpose | Download PDF |
| 0.80mm | POGO-PIN-17.5-1 | 17.53 | 15.62 | 0.51 | '- | C | 39.0 | General Purpose | Download PDF |
| 1.00mm | POGO-PIN-3.30-1 | 3.30 | 2.40 | 0.51 / 0.62 Collar | E | H | 16.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-4.00-3 | 4.00 | 3.00 | 0.80 | D | H | 31.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-4.30-1 | 4.30 | 2.80 | 0.89 | H | H | 28.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-4.30-2 | 4.30 | 2.80 | 0.89 | D | E | 28.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-4.30-5 | 4.30 | 2.80 | 0.89 | E | H | 28.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-4.30-6 | 4.30 | 2.80 | 0.89 | D | E | 36.5 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-1 | 5.80 | 4.00 | 0.84 | H | H | 30.6 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-2 | 5.80 | 4.00 | 0.84 | E | H | 30.6 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-3 | 5.80 | 4.00 | 0.84 | C | C | 31.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-4 | 5.80 | 4.00 | 0.84 | E | E | 30.6 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-5 | 5.80 | 4.00 | 0.84 | E | H | 20.4 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-6 | 5.80 | 4.00 | 0.84 | H | H | 20.4 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-7 | 5.80 | 4.00 | 0.84 | C | C | 31.0 | Non-Magnetic | Download PDF |
| 1.00mm | POGO-PIN-5.80-8 | 5.80 | 4.00 | 0.84 | H | C | 31.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.80-9 | 5.80 | 4.00 | 0.80 | C | E | 19.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-5.92-1 | 5.92 | 4.30 | 0.60 | B | E | 32.0 | Non-Magnetic | Download PDF |
| 1.00mm | POGO-PIN-6.20-1 | 6.20 | 4.00 | 0.80 | C | E | 19.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-6.45-1 | 6.45 | 5.75 | 0.59 / 0.70 Collar | E | Solder Pot | 20.0 | Non-Magnetic | Download PDF |
| 1.00mm | POGO-PIN-6.50-3 | 6.50 | 4.00 | 0.80 | H | C | 19.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-6.65-1 | 6.65 | 4.00 | 0.84 | E | E | 30.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-7.00-2 | 7.00 | 4.20 | 0.85 | H | H Fixed | 37.0 | BATTERY CONTACT | Download PDF |
| 1.00mm | POGO-PIN-7.00-4 | 7.00 | 4.20 | 0.85 | C | C Fixed | 37.0 | BATTERY CONTACT | Download PDF |
| 1.00mm | POGO-PIN-8.00-1 | 8.00 | 4.00 | 0.84 | E | E | 30.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-9.40-1 | 9.40 | 7.11 | 0.76 | C Fixed | C | 56.7 | General Purpose | Download PDF |
| 1.00mm | POGO-PIN-9.81-1 | 9.81 | 7.11 | 0.75 | C | C | 20.0 | Semiconductor | Download PDF |
| 1.00mm | POGO-PIN-11.9-1 | 11.94 | 9.14 | 0.71 | '- | E | 57.0 | General Purpose | Download PDF |
| 1.00mm | POGO-PIN-13.2-1 | 13.21 | 10.03 | 0.69 / 0.81 Collar | D | J | 11.0 | General Purpose | Download PDF |
| 1.00mm | POGO-PIN-15.4-4 | 15.40 | 11.10 | 0.81 | '- | C | 60.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-5.95-1 | 5.95 | 4.00 | 0.91 | H | H | 30.9 | Semiconductor | Download PDF |
| 1.27mm | POGO-PIN-5.95-5 | 5.95 | 4.00 | 0.91 | C | C | 28.7 | Non-Magnetic | Download PDF |
| 1.27mm | POGO-PIN-8.00-5 | 8.00 | 6.22 | 0.71 | B Fixed | H | 57.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-8.45-2 | 8.45 | 7.30 | 0.60 / 0.90 Collar | Terminal [OPEN] | E | 29.4 | Non-Magnetic | Download PDF |
| 1.27mm | POGO-PIN-8.70-3 | 8.70 | 5.85 | 1.00 | C | H | 29.3 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-8.96-1 | 8.96 | 5.70 | 0.94 | E Fixed | C | 80.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-12.0-1 | 11.94 | 8.00 | 0.94 | C | ST-Fixed | 80.8 | BATTERY CONTACT | Download PDF |
| 1.27mm | POGO-PIN-12.0-2 | 12.00 | 8.00 | 0.96 | H | ST-Fixed | 81.0 | Battery Contact | Download PDF |
| 1.27mm | POGO-PIN-12.9-1 | 12.90 | 9.00 | 0.91 | C | G | 43.5 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-13.2-2 | 13.21 | 10.03 | 0.86 / 0.97 Collar | D | J | 28.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-13.5-1 | 13.50 | 9.50 | 0.96 | H | Terminal | 81.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-13.5-2 | 13.50 | 9.50 | 0.96 | E | Terminal | 81.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-16.1-4 | 16.13 | 12.70 | 0.69 | C Fixed | H | 79.0 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-19.0-2 | 19.05 | 15.25 | 0.91 | C | C | 16.5 | General Purpose | Download PDF |
| 1.27mm | POGO-PIN-19.0-3 | 19.05 | 15.25 | 0.91 | C | C | 10.0 | Non-Magnetic | Download PDF |
| 1.27mm | POGO-PIN-27.0-1 | 27.08 | 24.54 | 0.64 / 0.84 | C | Terminal | 48.0 | General Purpose | Download PDF |
| 1.50mm | POGO-PIN-6.60-1 | 6.60 | 3.35 | 1.20 | E | E | 26.1 | Semiconductor | Download PDF |
| 1.50mm | POGO-PIN-8.68-1 | 8.68 | 5.85 | 1.00 | F | G | 29.3 | General Purpose | Download PDF |
| 1.50mm | POGO-PIN-9.53-1 | 9.53 | 7.24 | 1.40 | B Fixed | E (3 PT WEDGE) | 109.0 | General Purpose | Download PDF |
| 1.50mm | POGO-PIN-17.1-1 | 17.17 | 5.66 | 0.94 / 1.09 Collar | C | Terminal | 62.0 | General Purpose | Download PDF |
| 1.60mm | POGO-PIN-9.22-1 | 9.22 | 7.24 | 1.40 | B Fixed | C | 110.0 | General Purpose | Download PDF |
| 1.60mm | POGO-PIN-9.27-1 | 9.27 | 7.24 | 1.40 | B Fixed | C | 110.0 | Battery Contact | Download PDF |
| 1.85mm | POGO-PIN-14.0-1 | 14.00 | 11.00 | 0.80 / 1.30 Collar | E | E | 4.0 | General Purpose | Download PDF |
| 1.85mm | POGO-PIN-14.3-1 | 14.30 | 10.00 | 0.80 / 1.30 Collar | E | Terminal | 3.0 | General Purpose | Download PDF |
| 2.54mm | POGO-PIN-7.00-1 | 7.01 | 3.94 | 1.51 / 1.90 Collar | C Fixed | C | 128.0 | Battery Contact | Download PDF |
| 2.54mm | POGO-PIN-8.00-4 | 8.00 | 4.00 | 1.50 / 1.90 Collar | B Fixed | C | 21.1 | Battery Contact | Download PDF |
| 2.54mm | POGO-PIN-9.65-1 | 9.65 | 6.00 | 1.65 | E | E | 19.0 | Semiconductor | Download PDF |
| 2.54mm | POGO-PIN-10.4-1 | 10.44 | 6.99 | 1.50 / 1.905 Collar | C | ST-Fixed | 70.9 | Battery Contact | Download PDF |
| 2.54mm | POGO-PIN-12.8-2 | 12.80 | 10.00 | 1.80 / 2.00 Collar | B | H | 71.3 | General Purpose | Download PDF |
| 2.54mm | POGO-PIN-13.7-1 | 13.72 | 10.92 | 1.65 / 1.78 Collar | J | Solder Pot | 78.0 | General Purpose | Download PDF |
| 2.54mm | POGO-PIN-17.0-1 | 17.00 | 13.00 | 1.50 / 1.90 Collar | E | E | 4.0 | General Purpose | Download PDF |
| 2.54mm | POGO-PIN-24.6-1 | 24.64 | 18.55 | 1.37 | C | '- | 99.0 | General Purpose | Download PDF |
| 3.50mm | POGO-PIN-13.0-1 | 13.00 | 7.51 | 2.00 / 2.49 Collar | D | Terminal | 30.0 | Battery Contact | Download PDF |
| 3.50mm | POGO-PIN-13.0-2 | 13.00 | 7.51 | 2.00 / 2.49 Collar | D | Terminal | 86.0 | Battery Contact | Download PDF |
| 3.50mm | POGO-PIN-8.20-1 | 8.20 | 5.92 | 1.63 / 3.15 Collar | C Fixed | C | 92.0 | Battery Contact | Download PDF |
| 4.78mm | POGO-PIN-10.0-1 | 10.60 | 7.96 | 2.03 / 3.89 Collar | C | '- | 176.0 | Battery Contact | Download PDF |
| 5.00mm | POGO-PIN-5.56-1 | 5.56 | 3.95 | 2.40 / 3.90 Collar | B Fixed | C | 90.0 | Battery Contact | Download PDF |
