CASE STUDY:

Circular Stacked PCBs

hilo circular pcb stack

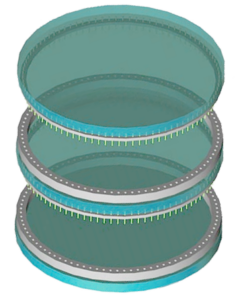

illustration of circular stackup 0.9" diameter

Circular PCB Stack for Volume Optimization

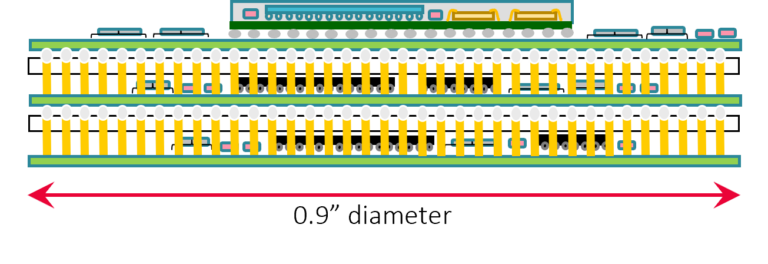

  • Custom HiLo connector designed for perimeter of circle – maximizing PCB real estate for components
  • Board-to-board pitch optimized to lower overall stack height
  • Application demanded survival in high vibration and G-force environment

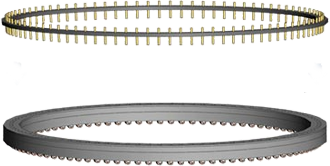

Top: pin field, Bottom: socket
Mated pin field and socket

Core Capabilities:

Ruggedization

HiLo Interconnect

ISI's Co-Development Process

Working with the ISI team is a highly collaborative engagement. The initial requirements customers bring are the starting point, but the big benefit comes as our engineers work to propose various solutions, including pros and cons of each. Those solutions include what many competitors can’t offer, which is in-house execution of nearly all aspects of the project.

Exchange technical details with customer to define challenges and establish scope of the project.

Assess likelihood of achieving the desired outcome and estimate the required engineering effort.

A quote will be issued to include NRE charges, price for prototypes and production volumes, and timeline for completion.

Design work begins with a particular focus on manufacturability. Frequent technical exchanges with the customer ensure a design that meets their expectations.

Upon customer approval, ISI initiates orders with suppliers and starts developing tools, molds, fixtures, and other custom equipment as required.

After satisfactory prototype testing and customer approval, product is released for volume production.
