MICTOR Products

Matched Impedence Connectors

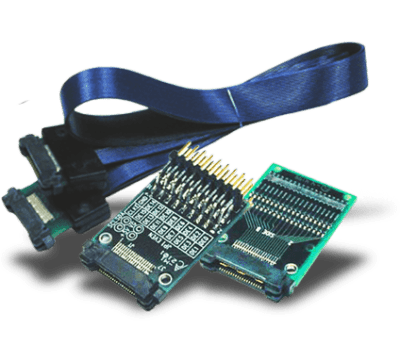

MICTOR Breakout Cables & Adapters

ISI’s probing adapters support various Agilent single-ended probes designed for connection to Tyco/AMP’s 2-767004-2 MICTOR connector or through flying leads. The adapters permit system designers the ability to simultaneously connect a logic analyzer and oscilloscope, or any other pair of instruments which can connect to the MICTOR connector and header pins. Furthermore, for those system designers who have designed in the MICTOR connector onto their PCB but do not have the luxury of having Agilent’s MICTOR specific probes, ISI’s probing adapters easily allow flying lead or other generic probes to be used.

How MICTOR adapters work

The BCM-038-MICTOR-0000 plugs directly into the MICTOR connector on the target PCB and reroutes the signals to another MICTOR connector as well as a set of headers on 0.1” spacing. This allows the Agilent probe and a second instrument, such as an oscilloscope, to connect simultaneously to the PCB for parallel logic analysis and signal fidelity observation.

Various adapters, such as the MIC-38-BREAKOUT or the MIC-38-SMTPADS, also plug directly into the MICTOR connector on the target PCB, but reroute the signals only to 0.1” spaced headers or SMT pads, respectively. This is ideal for those engineers without access to a MICTOR specific probe, or who want to monitor the signals on other types of instruments. ISI provides MICTOR breakouts in various sizes, ranging from 38 to 152 pins.

The MICTOR connector user can simultaneously perform logic analysis while viewing signal waveforms on an oscilloscope or other instrument
The MICTOR connector user is not limited to test instruments designed specifically for attachment to the MICTOR connector
Available with signal access via 0.025” square header pins or SMT pads spaced on 0.100” pitch
Each signal pin number is silk-screened on the adapter for easy identification
Cables in various configurations are available

Design Applications

BGA, CSP, Micro BGA Test Socket Development
Wafer-level test and evaluation
Multi-Chip Modules (MCM) board level test
TCP/Carrier tape test and evaluation

Substrate Test
PCB Functional Test
Cell Phone Battery Pins

MICTOR Adapter Product Catalog

Standard stocked pogo pin available from stock
Pitch as small as 0.4MM
Lengths as short as 1.55MM
Custom designed pogo pins are available upon request
Ask about our pogo pin-based board-to-board interconnect
Single and double plunger styles
Non-magnetic pins available

E5339A: single-ended MICTOR to 40-pin pod connector
E5346A: single-ended MICTOR to 40-pin pod connector
E5351A: single-ended MICTOR to 40-pin pod connector
E5380A: single-ended MICTOR to 90-pin pod connector
E5381A: differential flying leads to 90-pin pod connector
E5382A: single-ended flying leads to 90-pin pod connector
E5383A: single-ended flying leads to 40-pin pod connector

MICTOR ADAPTERS
Pin Count	ET Part#	Product Description	Mates w/Connector1	Mates w/Connector2	Drawing

38	MIC-38-BREAKOUT	MICTOR Breakout to 38 position MICTOR Male Plug w/Digital signals brought out to accessible headers	2-767004-2	CON-MICTOR-FEM-38-SMT	F6716
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-MALE/FEM-EXTENDER	MICTOR extender for 38 position. Male to female. Extends the connector 35mm (1.378 inches)	2-767004-2	CON-MICTOR-FEM-38-SMT	F7657
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	BCM-038-MICTOR-0000	MICTOR Bug Katcher allows user to monitor signals w/a logic analyzer and an oscilloscope simultaneously	2-767004-2	CON-MICTOR-FEM-38-SMT	F7293
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-BREAKOUT-FEMALE	MICTOR Breakout to 38 position MICTOR Female Receptacle w/Digital signals brought out to accessible headers	767007-8	CON-MICTOR-MALE-38-SMT	F7049
38	MIC-38-SPLITTER	MICTOR Splitter consists of one 38 position MICTOR Plug & Three 38 position MICTOR Female Receptacles	3 Female Receptacles mate w/767007-8	CON-MICTOR-FEMALE-SMT	F6778
			1 Male Plug mates w/2-767004-2
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1

76	MIC-76-BREAKOUT	MICTOR Breakout to 76 position MICTOR Male Plug w/Digital signals brought out to accessible headers	2-767004-3	N/A	F6741

114	MIC-114-BREAKOUT	MICTOR Breakout to 114 position MICTOR Male Plug w/Digital signals brought out to accessible headers	2-767004-4	CON-MICTOR-FEM-114-SMT	F6740
114	MIC-114-BREAKOUT-FEMALE	MICTOR Breakout to 114 position MICTOR Female Plug w/Digital signals brought out to accessible headers	1-767007-0	N/A	F7414

152	MIC-152-BREAKOUT-MALE	MICTOR Breakout to 152 position MICTOR Male Plug w/Digital signals brought out to accessible headers	2-767004-5	N/A	F7022
152	MIC-152-BREAKOUT-FEMALE	MICTOR Breakout to 152 position MICTOR Female Plug w/Digital signals brought out to accessible headers	1-767007-1	CON-MICTOR-MAL-152-SMT	F7046
MICTOR CABLES Wired 1 to 1 (Mirror Version Available Upon Request!)

38	MIC-38-CABLE-MF-3	MICTOR Cable, 38 position, Male to Female, 3″ Length Temperature Min/Max: 0-50 degrees Celsius	Female mate:	Female mate:	F7287
			767007-8	CON-MICTOR-38-MALE-SMT
			Male mate:	Male mate:
			2-767004-2	CON-MICTOR-38-FEM-SMT
38	MIC-38-CABLE-MF-6	MICTOR Cable, 38 position, Male to Female, 6″ Length Temperature Min/Max: 0-50 degrees Celsius	Female mate:	Female mate:	F7326
			767007-8	CON-MICTOR-38-MALE-SMT
			Male mate:	Male mate:
			2-767004-2	CON-MICTOR-38-FEM-SMT
38	MIC-38-CABLE-MF-9	MICTOR Cable, 38 position, Male to Female, 9″ Length Temperature Min/Max: 0-50 degrees Celsius	Female mate:	Female mate:	F7419
			767007-8	CON-MICTOR-38-MALE-SMT
			Male mate:	Male mate:
			2-767004-2	CON-MICTOR-38-FEM-SMT
38	MIC-38-CABLE-MF-18	MICTOR Cable, 38 position, Male to Female, 18″ Length	Female mate:	Female mate:	F6777
		Temperature Min/Max: 0-50 degrees Celsius	767007-8	CON-MICTOR-38-MALE-SMT
			Male mate:	Male mate:
			2-767004-2	CON-MICTOR-38-FEM-SMT
38	MIC-38-CABLE-MM-3	MICTOR Cable, 38 position, Male to Male, 3″ Length Temperature Min/Max: 0-50 degrees Celsius	2-767004-2	CON-MICTOR-38-FEMALE-SMT	F7469
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-CABLE-MM-6	MICTOR Cable, 38 position, Male to Male, 6″ Length	2-767004-2	CON-MICTOR-38-FEM-SMT	F7050
		Temperature Min/Max: 0-50 degrees Celsius	767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-CABLE-MM-9	MICTOR Cable, 38 position, Male to Male, 9″ Length	2-767004-2	CON-MICTOR-38-FEMALE-SMT	F7068
		Temperature Min/Max: 0-50 degrees Celsius	767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-CABLE-MM-18	MICTOR Cable, 38 position, Male to Male, 18″ Length	2-767004-2	CON-MICTOR-38-FEM-SMT	F6776
		Temperature Min/Max: 0-50 degrees Celsius	767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-CABLE-MM-24	MICTOR Cable, 38 position, Male to Male, 3″ Length Temperature Min/Max: 0-50 degrees Celsius	2-767004-2	CON-MICTOR-38-FEM-SMT	F7687
			767095-1
			767094-1
			767054-1
			767089-1
			767044-1
38	MIC-38-CABLE-MRF-3	MICTOR Cable, 38 position, right angle male to female, 3″ length	Female mate:	Female mate:	F7418
			767007-8	CON-MICTOR-38-MALE-SMT
			Male mate:	Male mate:
			2-767004-2	CON-MICTOR-38-FEM-SMT
