X3-TIMING

Four Clock Outputs 1.5KHz to 1GHz 1ppm & Four Trigger Outputs & Spartan-3 FPGA

Legacy Product - Discontinued

Due to the primary FPGA component being end-of-life, ISI has discontinued this product. Please contact us if you are interested to develop a product with similar capabilities.

Overview

The X3-Timing is an XMC I/O module with precision, low-noise clock generation and distribution. The module has 4 output clocks and four output triggers as well as a clock/reference input and a trigger input. The X3-Timing can also act as a system timing card in PXI systems, providing the reference clock, sample clocks and triggering.

Key Features

Programmable 1.5 kHz
to 1 GHz range

4x single-ended clock outputs

XMC I/O

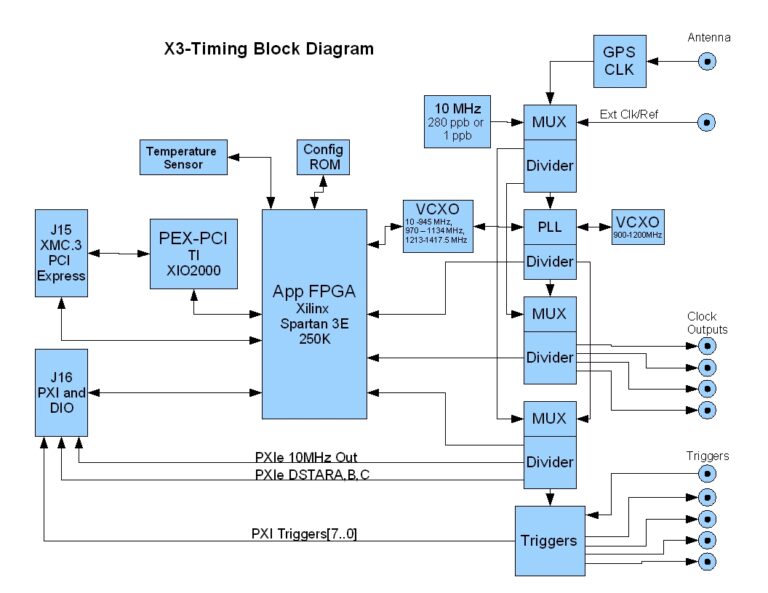

Block Diagram, Data Sheet and Product Details

Discontinued Product

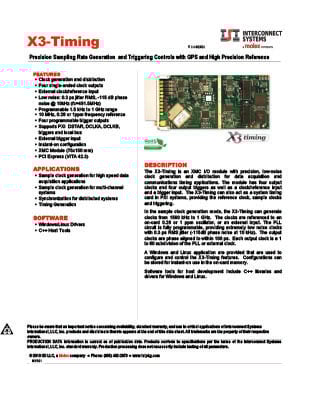

X3-TIMING Data Sheet

Download

Features

Clock generation and distribution
Four single-ended clock outputs
External clock/reference input
Low jitter: 0.2 ps jitter RMS
Programmable 1.5 kHz to 1 GHz range
10 MHz, 1 ppm frequency reference
Optional GPS-disciplined reference
Indoor GPS reception under most conditions
Four programmable trigger outputs
Supports PXI DSTAR, DCLKA, DCLKB, triggers and local bus
External trigger input
Instant-on configuration
XMC Module (75×150 mm)
PCI Express (VITA 42.3)

Applications

Sample clock generation for high speed data acquisition applications
Sample clock generation for multi-channel systems
Synchronization for distributed systems
GPS-coordinated systems
Timing Generation (Analog cover and heatsink removed.)

In the sample clock generation mode, the X3-Timing can generate clocks from 1560 kHz to 1 GHz. The clocks are referenced to GPS, an on-card 1 ppm oscillator, or an external input. The PLL circuit is fully programmable, providing extremely low noise clocks with 0.2 ps RMS jitter typically. The output clocks are phase aligned to within 100 ps. Each output clock is a 1 to 80 subdivision of the PLL or external clock.

The optional GPS receiver outputs a 10 MHz reference signal locked to the GPS that is very stable and low noise. This GPS receiver has been specially optimized for the best time stability and receiver sensitivity. The receiver requires only one satellite for time tracking and -186 dBw power, making it able to receive indoors in most conditions.

A Windows and Linux application are provided that are used to configure and control the X3-Timing features. Configurations can be stored for instant-on use in the on-card memory. Software tools for host development include C libraries and drivers for Windows and Linux.

This extremely versatile module is easily adapted for use in virtually any type of system. Our XMC carrier adapters offer conduction and convection cooling and are available for a range of interfaces including Desktop PCI, Desktop PCI Express, Cabled PCI Express, CompactPCI, and PXI/PXI Express. This module is also readily installed into Innovative Integration’s eInstrument Embedded PC, SBC-ComEx Single-Board Computer, and Andale Data Loggers.
